High performance Day/Night PTZ with Multi Protocol
Non Day/Night Option Available
|
15-CD55NV Overview:
Don't let the price fool you.... The CD55NV System is Complete. Infrared day/night auto switching speed dome camera for external use. Uses SONY © super HAD technology, Dual use Color or Monochrome. Wall mounting with brackets
15-CD55NV Features:
■ 1/4" CCD color SONY EX-VIEW camera
■ IR Day/Night auto-switching
■ 520 Lines
■ RS485 protocols
■ Illumination 0.7 Lux
■ Designed for external use (IP66 enclosure)
■ 80 preset positions
■ Pan/Tilt on board
■ On board 24V Heater and Fan
■ Internal Heater ON < 15C OFF > 25C
■ Internal Fan ON > 40C OFF < 30C
■ Includes wall mounting bracket
■ R485 protocols - SONY, COP, SAE, VCL
■ PELCO-P, PELCO-D, Panasonic
■ DIAMOND, KALATEL and Neon
15-CD55NV Package Includes:
■ (1) High performance PTZ with 18x Optical 12x Digital Zoom, and a high power Sony Ex-View Chipset
■ (1) Power supply, (24V - yes, can be placed on your existing 24V system also)
■ (2) Mounts (one above type, and one wall)
■ (1) Compact sized Outdoor housing
■ (1) Instruction manual, and even a set of gloves.
15-CD55NV Specifications:
|
Elements: |
EIA/
NTSC: 768H x 494 V – CCIR/ PAL: 752 H x 582 V |
|
Sensor: |
1/4"
SONY Ex-View HAD CCD |
|
Scanning
System: |
NTSC/PAL
2:1 Interlace |
|
Resolution: |
520
TV Lines |
|
Video
Output: |
1.0
Vp-p/75W BNC |
|
Min.
Illumination: |
0.7
Lux |
|
S/N
Ratio: |
S/N
Ratio 50dB |
|
Electronic
Shutter: |
1/100,000sec |
|
White
Balance: |
Auto,
ATW, One Push WB, Manual WB |
|
Gamma
Correction: |
0.45 |
|
Gain
Control: |
Auto/
Manual (-3 to 28dB, 2dB steps) |
|
Backlight
Compensation: |
Auto
on/off |
|
Focal
Length: |
4.1-73.8mm |
|
Zoom
Ratio: |
18x
optical/12x electronic |
|
Zoom
Control: |
Fast
Motorize, 3/6 sec (full stroke) |
|
Focus: |
Auto/Manual/Push
lock |
|
Iris: |
Auto/Manual |
|
Day
Night: |
Yes
-- Autoswitching |
|
Rotation: |
Endless |
|
Pan
Speed: |
0.5°~140°/sec |
|
Tilt
Speed: |
0.5°~100°/sec |
|
Preset
Data: |
Pan/tilt/zoom
ratio, Position/sequence/cruise |
|
Preset
Points: |
80max. |
|
Environment: |
External
(IP66) |
|
Operation
Temp: |
0°~40°C |
|
Humidity: |
10%~90%RH |
|
Storage
Temperature: |
-20°~60°C |
|
Power: |
AC
24V @ 50 Watts |
|

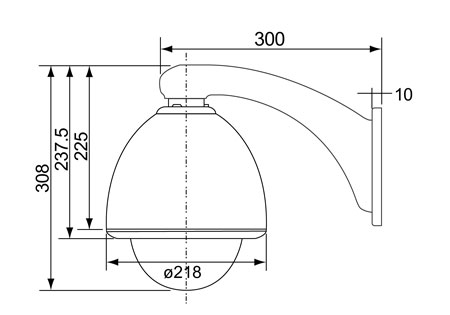

Dimensions: |
ø218x308mm |
|
Weight: |
5kg |
|
